Agricultural Harrow Plough Disc Blades Land Leveling Crushed Soil

Product Categories

Jinan Xinyiyin Import and Export Trading Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

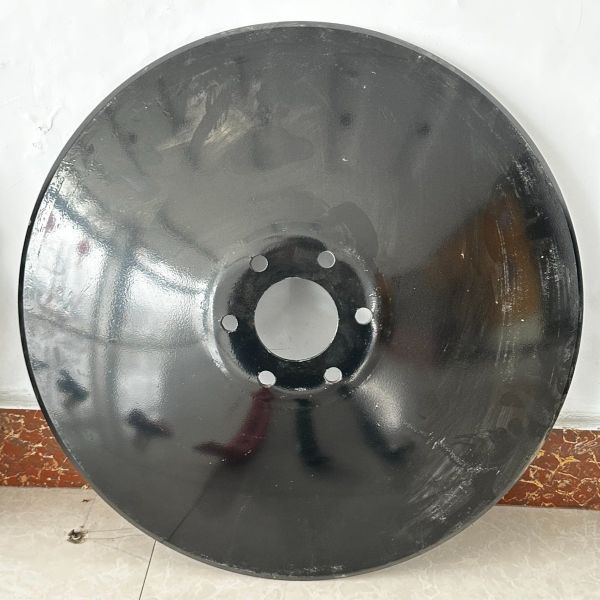

Agricultural Harrow Plough Disc Blades Land Leveling Crushed Soil

Name: Agricultural Harrow Plough Disc Blades Land Leveling Crushed Soil
Brand: Xinyi
Price: 1 USD

Quality Agricultural Harrow Plough Disc Blades Land Leveling Crushed Soil wholesale

Brand Name : Xinyi

Model Number : 65Mn

Certification : CE

Place of Origin : China

MOQ : 100 pieces

Price : US $ 22.5-24.5 / piece

Payment Terms : L/C,T/T,Western Union

Supply Ability : 5000/Month

Delivery Time : 7-14 work days

Packaging Details : Iron Frame

Material : 65Mn

Power Source : Diesel

Weight : 1.1-27kgs

After-sales Service : Provide

Warranty : 1year

Color : Red/Black/Blue/Yellow

Width : 12inch-44inch

Thickness : 3mm-12mm

Hardness : 38-46HRC

Edge of Disc Blade : Round or Notched

Shape : Flat,Concave or Wavy

Surface Treatment : Painting

Transport Package : Pallet

Specification : Customizable

HS Code : 8413290000

Contact Now

Agricultural Disc Blades Harrow Plough Land Leveling Crushed Soil

Yucheng Xinyi Machinery Manufacturing Co., Ltd.

Product Technical Parameter

Name:65Mn Plough Plow Blade Harrow Disc Blade for Harrow Plough

Disc blades are widely used as the most important wear parts on disc plows and disc harrows. Our disc blades have super long life, thickened edges, and anti-rust coatings. They are exported to the United States, Canada, Russia, South Africa, Southeast Asia and other countries every year, with an annual export volume of 1 million pieces. With more than 20 years of production experience, we help customers in various regions to open up better markets.

Thanks to the use of China's best steel Anshan steel and Lingyuan steel, we ensure that the quality of our discs is better and the service life is longer, up to 2-3 years.

Material:	65Mn,Boron steel
Hardness:	HRC38-45, HRC43-48
Thickness:	3.0-12.5mm
Size/dimension:	12"-44"(300mm-1120mm)
Edge of Disc Blade:	Round or Notched.
Shape:	Flat,Concave or Wavy
MOQ:	100 pcs
Production Capacity:	7 Million pcs annually
Surface treatment:	Painting
Colors:	Blue or black ( matt or bright), Made to your order
Hole Type:	Square, Round, Hexagon, Clover Leaf, Optional
Hole Size:	27x27mm, 42x42mm, optional
Working Depth:	200mm, 300mm
Working Width:	3.4M ~ 6.2M
Packing:	Non-fumigation wooden case, metal case according policy of different regions
Feature /Characteristic:	Highest wear life due to special edge making process

Common Specifications of Disc
Dia.		Concavity	Thickness
mm	inch	mm	mm
255	10	12	3
305	12	19	3
330	13	25	3
355	14	38	3
410	15	38~50	3
430	17	57	3,4
460	18	38~60	3,4
480	19	57	3,4
510	20	44~63	3,4,5
535	21	63	3,4,5
560	22	60~85	4,5,6
585	23	75~90	4,5.6
610	24	75~95	4,5,6
660	26	86~115	5,6,7,8
710	28	100~130	5,6,7,8
760	30	120~135	6,7,8,10,12
810	32	120~140	8,10,12
910	36	120-200	8,10,12
960	38	120-200	8,10,12

Normal packing or According to your requirement.

Safe, complete and fast delivery of goods to customers.

1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users.
