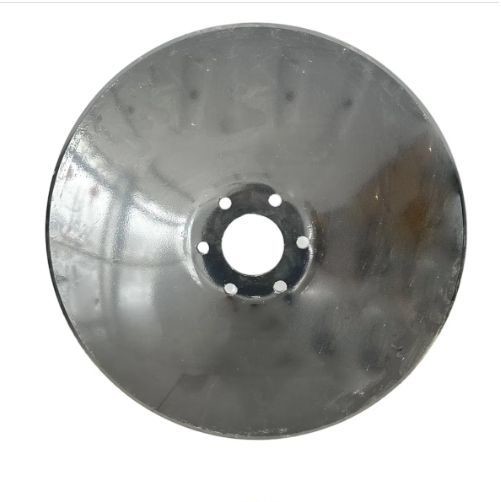

65mn Agricultural Disc Plough Blade HRC43-48 For Farming

Brand Name : Xinyi

Model Number : 65Mn

Certification : CE

Place of Origin : China

MOQ : 100 pieces

Price : US $ 22.48-24.26 / piece

Payment Terms : L/C,T/T,Western Union

Supply Ability : 50000 Piece/ per Year

Delivery Time : 8-20 work days

Packaging Details : Iron Frame

Material : 65mn/40mnb

Power Source : Diesel

Weight : Customizable

After-sales Service : Provide

Warranty : One Year

Model No. : 26*6mm

Applications : Harrow/Plough

Hardness : 38-45HRC/43-48HRC

Logo : Make to Order

Color : Red/Yellow/Blue/Black

Certificate : CE/ISO9000/SGS

Specification : Customizable

HS Code : 84329000

Contact Now

Durable Agricultural Disc Plough Blade For Enhanced Farming Performance

Product Description:

Disc blade is widely used in disc plough, disc harrow on the most important wear parts. we disc blade are exported to the United States, Canada, Russia, South Africa, Southeast Asia and other countries every year, with an annual export of 1 million pieces. has more than 20 years of production experience, helping customers in various regions to open up better markets.

Thanks to the use of China's best steel Anshan steel and Lingyuan steel, we ensure that the quality of our disks is better and the service life is longer, up to 2-3 years.
Material: 65Mn,Boron steel
Hardness: HRC38-45, HRC43-48
Thickness: 3.0-12.5mm
Size/dimension: 12"-44"(300mm-1120mm)
Edge of Disc Blade: Round or Notched.
Shape: Flat,Concave or Wavy
MOQ: 100 pcs
Production Capacity: 7 Million pcs annually
Surface treatment: Painting
Colors: Blue or black ( matt or bright), Made to your order
Hole Type: Square, Round, Hexagon, Clover Leaf, Optional
Hole Size: 27x27mm, 42x42mm, optional
Working Depth: 200mm, 300mm
Working Width: 3.4M ~ 6.2M
Packing: Non-fumigation wooden case, metal case according policy of different regions
Feature /Characteristic: Highest wear life due to special edge making process
Common Specifications of Disc
Dia. Concavity Thickness
mm inch mm mm
255 10 12 3
305 12 19 3
330 13 25 3
355 14 38 3
410 15 38~50 3
430 17 57 3,4
460 18 38~60 3,4
480 19 57 3,4
510 20 44~63 3,4,5
535 21 63 3,4,5
560 22 60~85 4,5,6
585 23 75~90 4,5.6
610 24 75~95 4,5,6
660 26 86~115 5,6,7,8
710 28 100~130 5,6,7,8
760 30 120~135 6,7,8,10,12
810 32 120~140 8,10,12
910 36 120-200 8,10,12
960 38 120-200 8,10,12

Main Feature
1) Steel selection of China's best Angang and Lingyuan steel, good quality is guaranteed.
2) Heat treatment process, strict control of temperature and time, high hardness and good toughness of disc blade.
3) Automatic spray equipment, disk surface smooth color uniform beautiful

Product Introduction:
65mn Agricultural Disc Plough Blade HRC43-48 For Farming
1. Cutting Edge
The cutting edge is smooth and smooth without wrinkles
2. Automatic spray treatment
Smooth surface, uniform color
3. High temperature heat treatment
Strictly control temperature and time
4. Small ball test
Uniform hardness good toughness

Packing & shipping:

65mn Agricultural Disc Plough Blade HRC43-48 For Farming
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers.

After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently.

FAQ:

1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so dat I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after you're payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q: How can me order from you?
A: Please send us your enquiry list; we will reply you wifin two working days.
4.Q: If teh finger I look for are not in your catalogue, what should I do?
A: We can develop it according to you're drawing or sample.
5. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we has much more advantages as follows:
1. More than15years in manufacturing farming machine
2. More Professional Sales staffs to guarantee the better service
3. More agri machines for you're choice
4. More New products into your range to avoid price competition
5. Larger quantity production and shipment
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only7days
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "XINYI" brand and "CE"ceitification.;SGS certifications.
11.Lower repair rate and bad review rate.
12. Has received unstinting support from teh Chinese government.

Please feel free to contact me if you have any questions.
Thanks. Have a nice day!
