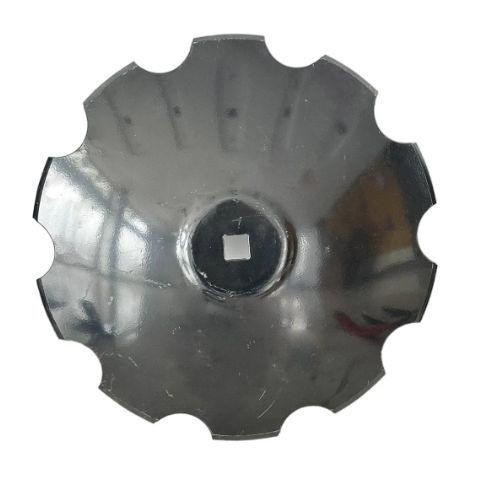

Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment

Name: Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment
Brand: Xinyi
Price: 22.48 USD

Quality Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment wholesale

Brand Name : Xinyi

Model Number : 65Mn

Place of Origin : China

MOQ : 100psc

Price : US 22.48-24.26 each

Payment Terms : L/C,T/T,Western Union

Supply Ability : 5000 psc/month

Delivery Time : 7-14 days

Packaging Details : Iron Box

Material : 65mn/40mnb

Power Source : Diesel

Weight : 1.1-27kgs

After-sales Service : Provide

Warranty : 1year

Color : Red/Black/Blue/Yellow

Width : 12inch-44inch

Thickness : 3mm-12mm

Hardness : 38-46HRC

Edge of Disc Blade : Round or Notched

Shape : Flat,Concave or Wavy

Surface Treatment : Painting

Transport Package : Pallet

Specification : Customizable

HS Code : 8413290000

Contact Now

Yucheng Xinyi Machinery Manufacturing Co., Ltd.

Product Technical Parameter

Name:Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment

Disc blade is widely used in disc plough, disc harrow on the most important wear parts. we disc blade are exported to the United States, Canada, Russia, South Africa, Southeast Asia and other countries every year, with an annual export of 1 million pieces. has more than 20 years of production experience, helping customers in various regions to open up better markets.
Thanks to the use of China's best steel Anshan steel and Lingyuan steel, we ensure that the quality of our disks is better and the service life is longer, up to 2-3 years.

Material	65Mn,Boron steel
Hardness:	HRC38-45, HRC43-48
Thickness:	3.0-12.5mm
Size/dimension:	12"-44"(300mm-1120mm)
Edge of Disc Blade:	Round or Notched.
Shape:	Flat,Concave or Wavy
MOQ:	100 pcs
Production Capacity:	7 Million pcs annually
Surface treatment:	Painting
Colors:	Blue or black ( matt or bright), Made to your order
Hole Type:	Square, Round, Hexagon, Clover Leaf, Optional
Hole Size:	27x27mm, 42x42mm, optional
Working Depth:	200mm, 300mm
Working Width:	3.4M ~ 6.2M
Packing:	Non-fumigation wooden case, metal case according policy of different regions
Feature /Characteristic:	Highest wear life due to special edge making process

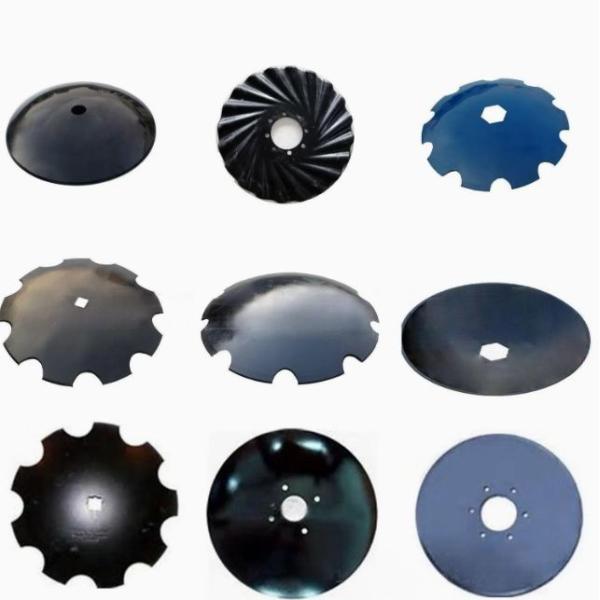

Common Specifications of Disc
Dia.		Concavity	Thickness
mm	inch	mm	mm
255	10	12	3
305	12	19	3
330	13	25	3
355	14	38	3
410	15	38~50	3
430	17	57	3,4
460	18	38~60	3,4
480	19	57	3,4
510	20	44~63	3,4,5
535	21	63	3,4,5
560	22	60~85	4,5,6
585	23	75~90	4,5.6
610	24	75~95	4,5,6
660	26	86~115	5,6,7,8
710	28	100~130	5,6,7,8
760	30	120~135	6,7,8,10,12
810	32	120~140	8,10,12
910	36	120-200	8,10,12
960	38	120-200	8,10,12

Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment

Normal packing or According to your requirement.

Safe, complete and fast delivery of goods to customers.

Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment

1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users.
